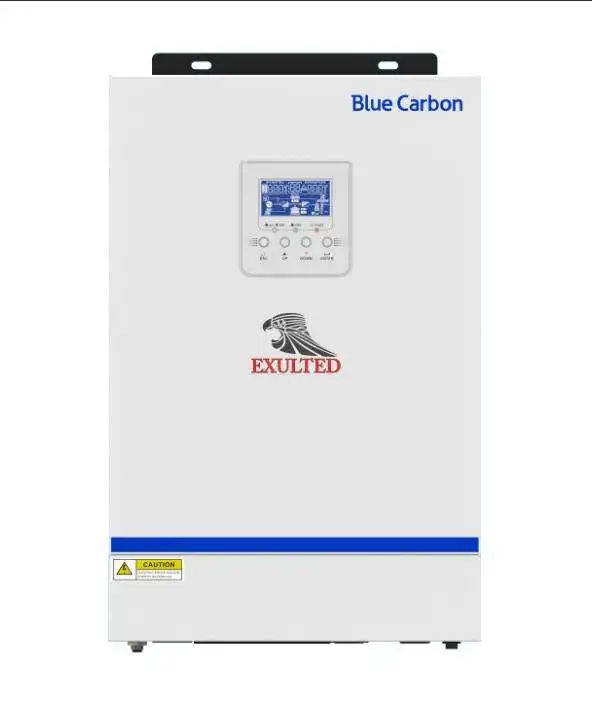

The Blue Carbon 3kVA Hybrid Solar High Voltage Inverter is designed to provide efficient, flexible, and reliable power management for solar energy systems. Built with advanced hybrid technology, the inverter supports simultaneous use of solar photovoltaic (PV) energy and utility grid power, allowing both sources to supply loads at the same time depending on system configuration.

The inverter delivers pure sine wave output with a power factor of 1.0, ensuring efficient energy usage and stable power delivery for sensitive electronic devices and household appliances. This high power factor allows the inverter to utilize its full rated capacity for connected loads, improving system performance and energy efficiency.

Designed for both on-grid and off-grid applications, the inverter integrates energy storage functionality when connected to batteries. Users can configure charging and output schedules, enabling efficient energy management during peak electricity periods or grid outages.

One of the key features of this inverter is its high-voltage solar input capability, supporting a wide PV input voltage range of 120V to 450V DC. This allows for flexible solar panel configurations and reduces energy loss associated with low-voltage systems.

The inverter also supports AC charging and programmable charging schedules, allowing batteries to be charged from grid power when solar energy is insufficient. Advanced charging control enables users to set charging voltage, charging current, and charging times, improving battery health and system reliability.

For remote monitoring and system management, the inverter can be equipped with an optional external Wi-Fi module, allowing users to monitor system performance and energy production through mobile or web-based applications.

With a maximum PV array capacity of 4500W, the inverter efficiently harnesses solar energy while delivering reliable power to homes and small offices.

Key Features

• PV and Utility Power Can Supply Loads Simultaneously (Configurable)

• Pure Sine Wave Output with Power Factor PF = 1.0

• Supports On-Grid and Off-Grid Operation

• Compatible with Energy Storage Battery Systems

• Programmable AC Charging and AC Output Time Settings

• Adjustable Battery Charging Voltage and Charging Current

• Optional External Wi-Fi Monitoring Module

• Battery Connection Optional (Can Operate Without Batteries)

• Wide PV Input Voltage Range: 120V – 450V DC

• Maximum PV Array Power: 4500W
